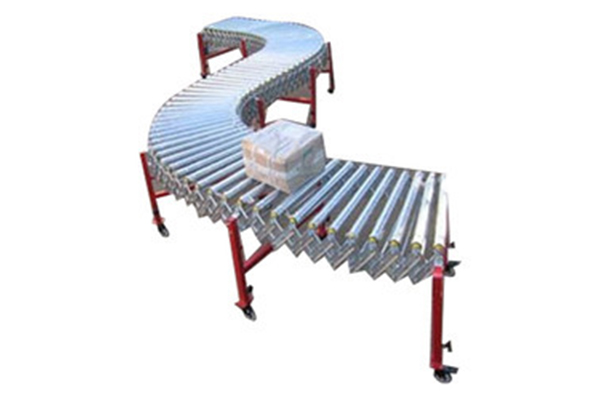

Flexible Roller Conveyor

We offer our clients Flexible Roller Conveyor, which are used for material handling applications in different industries such as automotive, food and packaging etc. Made from premium grade components, these conveyors are renowned for robust construction and effective conveying of bulk material. Further, we also custom design these conveyors as per the specifications provided by our clients.

Some of the accessories we offer include:

  • Control panel in MS/SS with VFD, on, off switches, emergency off switch & potentiometer for speed adjustment
  • Customized adjustable side guides in aluminum, stainless steel
  • Independent D.O.L. starter

Specifications:

Length 1 m to 25 m
Roller Width 200 mm to 1000 mm
Roller Material Steel, plastic
Roller Diameter 50 mm
Type of Conveyor Power & free roller conveyor; 90degree bend power & free roller conveyor
Motor 220-240v (Delta)/380-415 VY (Star) / 50 Hz
Speed Max. 30 m/min
Variable Speed With VFD (1 phase input & 3 phase output)
Structure Stainless steel, steel
Flexible Roller Conveyor

Powered Roller Conveyor

We are engaged in the manufacturing of Powered Roller Conveyor that are fabricated using finest grades of stainless steel. Renowned for optimum performance and longer service life, our range finds wide application in food, packaging and bottling industries. We also offer these conveyors in a variety of specifications to satisfy user specific requirements.

Some of the accessories we offer include:

  • Control panel in MS/SS with VFD, on, off switches, emergency off switch & potentiometer for speed adjustment
  • Customized adjustable side guides in aluminum, stainless steel
  • Independent D.O.L. starter

Specifications:

Length 1 m to 25 m
Roller Width 200 mm to 1000 mm
Roller Material Steel, plastic
Roller Diameter 50 mm
Type of Conveyor Power & free roller conveyor; 90degree bend power & free roller conveyor
Motor 220-240v (Delta)/380-415 VY (Star) / 50 Hz
Speed Max. 30 m/min
Variable Speed With VFD (1 phase input & 3 phase output)
Structure Stainless steel, steel
Powered Roller Conveyor

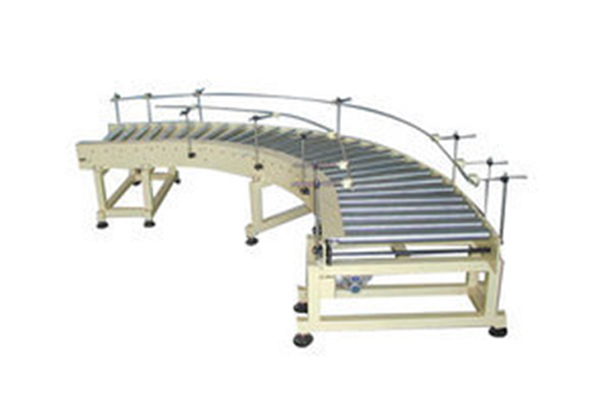

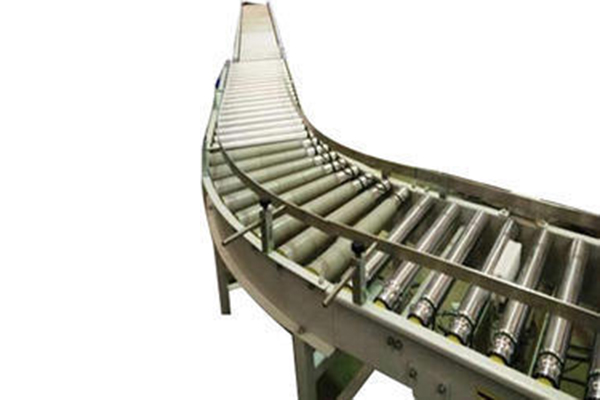

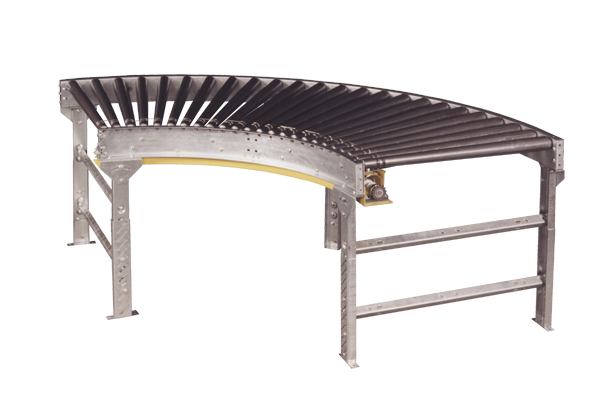

Bend Roller Conveyor

We are amongst renowned manufacturers and suppliers of Bend Roller Conveyor that are widely used in all industrial segment. Designed with utmost precision, these conveyors adequately meet the heavy-duty material handling requirements. Provided with on, off switches and emergency switches, these conveyors can be custom design to meet user specific requirements.

Accessories offered include:

  • Customized adjustable side guides in aluminum, stainless steel
  • Control panel in MS/SS with VFD, on, off switches, emergency off switch & potentiometer for speed adjustment
  • Independent D.O.L. starter


Specifications:


Length 1 m to 25 m
Roller Width 200 mm to 1000 mm
Roller Material Steel, plastic
Roller Diameter 50 mm, 70 mm, 100 mm, 150 mm
Type of Conveyor 90 degree bend gravity roller conveyor;
90 degree bend power & free roller conveyor
Motor 220-240V (Delta)/380-415V Y (Star)/50 Hz
Fixed Speed Max 30 m/min
Variable Speed With VFD (1 phase input & 3 phase output)
Structure Stainless steel, steel



Bend Roller Conveyor India

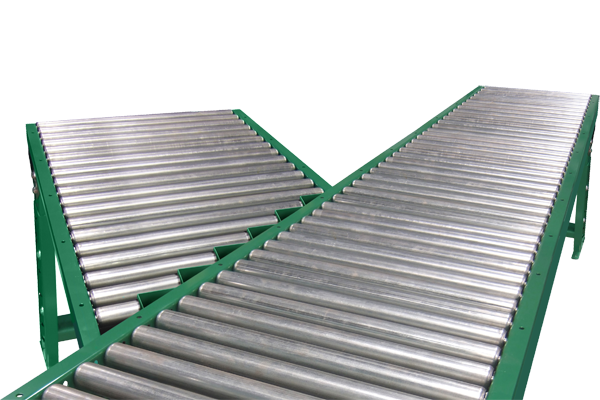

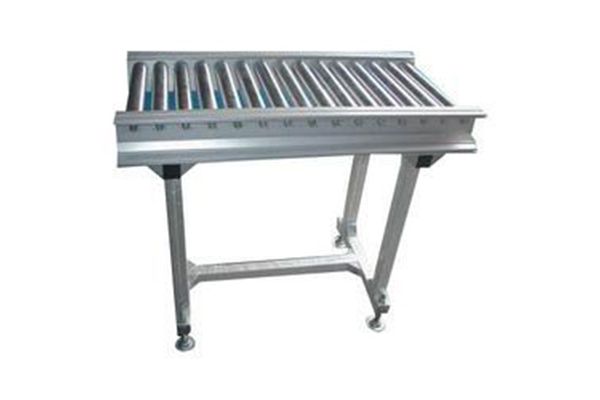

Gravity Roller Conveyor

We are engaged in offering Gravity Roller Conveyor for safe and virtually maintenance-free handling of goods for diverse application requirements. Renowned for rigid construction and apt conveying ability, these conveyors finds wide application in warehousing, production lines, accumulation at start or end of powered conveyors & manual assembly lines. To meet client requirement we also offer 90-degree bend gravity roller conveyor.

Accessories offered:

  • Control panel in MS, SS with VFD, on, off switches, emergency off switch & potentiometer for speed adjustment
  • Customized adjustable side guides in aluminum, stainless steel
  • Independent D.O.L. starter


Specifications:


Length 1 m to 25 m
Roller Width 200 mm to 1000 mm
Roller Material Steel, plastic
Roller Diameter 50 mm
Type of Conveyor Gravity roller conveyor, 90 degree bend gravity roller conveyor
Structure Stainless steel, steel
Gravity Roller Conveyor India

Flat Top Modular Belt Conveyor

Optimizing latest technology, we are engaged in manufacturing a qualitative range of Flat Top Modular Belt Conveyor. These belt conveyors are fabricated from high quality SS and MS with powder coating to ensure corrosion resistance and better durability. Our range is available in different lengths and width to meet the variegated requirements of the clients. Further, these conveyors are also stringently tested on quality parameters to ensure that these are free from any kind of defect.

Specifications:

Length 1000 mm to 25000 mm
Width 150 mm, 300 mm, 450 mm, 600 mm, 750 mm, 900 mm, 1050 mm, 1200mm
Motor 220-240 V (delta)/380-415 V Y (Star)/50 Hz
Fixed Speed Min 3 m/min; Max 55 m/min
Variable Speed With VFD (1 phase input, 3 Phase output)
Belt Material Polypropylene
Structure MS with Powder Coating / Painting, SS 304
Type of Drive Direct, Indirect, Intermediat
Flat Top Modular Belt Conveyor

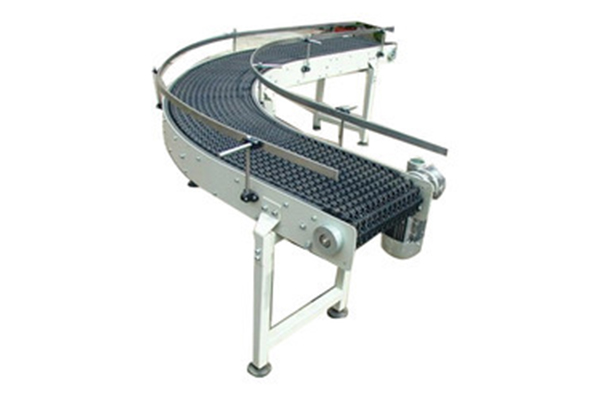

Bend Modular Belt Conveyor

We manufacture and supply a range of Bend Modular Belt Conveyor that cater to the material handling requirements of food, automotive and various other industries. These Bend Modular Belt Conveyor are built with precision using best grade components to ensure optimum performance and high durability. Further, we also offer turnkey solutions to meet the specific application requirements of our clients.

Specifications:

Pitch 30mm
Surface 37% Open Area
Drive System Joint
Belt Width Multiple of 100mm
Connecting Rod Dia. 8mm
Belt Material Nylon Glass Filled
Belt Strength 2,400 Kg/M
Curve Belt Strength 100 Kg/M
Temperature 40 to 90 Deg C
Belt Weight 7.39 Kg/m2
Available Color Black
Bend Modular Belt Conveyor

Flexible Powerised Roller Conveyor

We are engaged in Flexible Powerised Roller Conveyorwhich we are given to our client.

Specification:

Conveyor Type Flexible Powerised Roller conveyor
Components to convey Cartons, Totes, Crates.
Conveyor Min Length As per requirement
Conveyor Max Length As per reMr. Mohammad quirement
Conveyor Width As per requirement
Conveyor Height As per requirement
Roller MS withMr. Mohammad Zinc platted/SS
Roller dia. As per requirementlexible Powerised roller conveyor
Conveyor Frame MS with powder Coating.
Ground support PU coated caster wheel with break
Hardware MS plated
Conveyor Speed Variable speed
Motor Compact DC motor
Flexible Powerised Roller Conveyor

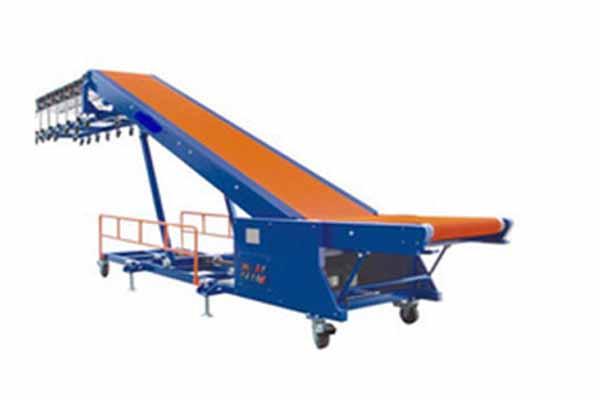

Dockless Truck Loading Conveyor

We are manufacture of Dock Less Truck Loading Conveyorwhich we are given to our client.

Specification:

Conveyor Type Dock less truck loading conveyor
Component to convey Carton boxes, Totes, Crates.
Capacity 50 kg/mtr.
Conveyor straight Length As per requirement
Conveyor Inclined Length As per requirement
C Conveyor Width As per requirement
Conveyor Input Height As per requirement
Conveyor Output Height Adjustable by Hydraulic cylinder & power pack.700mm to 2500mm.
Belt Material PVC anti skidding belt.
Conveyor Frame MS powder coating
Conveyor Stand MS powder coating
Ground support Wheels.
Speed of conveyor Adjustable Speed ( 10– 20 mtr/min.)
Dockless Truck Loading Conveyor

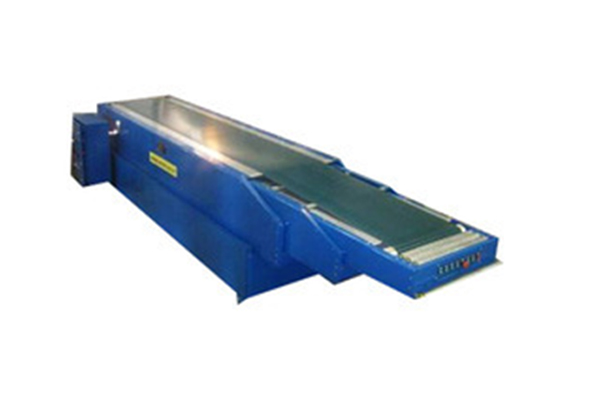

Telescopic Belt Conveyor

We are offering wide range of Telescopic Belt Conveyor. These types of conveyer are used in various Industrries.

Specification:

Conveyor Type Telescopic belt conveyor .
Component to convey Carton boxes,Totes,Crates,Bages
Wt.carrying capacity 30 kg/mtr.
Back Length As Per Requirement .
Elongated Length As Per Requirement .
Total extended Length As Per Requirement .
Conveyor Width As Per Requirement .
Conveyor Input Height As Per Requirement .
Conveyor Output Height As Per Requirement .
Belt Material PVC anti skidding belt .
Conveyor MS with powder coating.
Conveyor Stand MS with powder coating.
Ground support Wheels.
Speed of conveyor Adjustable Speed (10–20 mtr/min.)
Telescopic Belt Conveyor

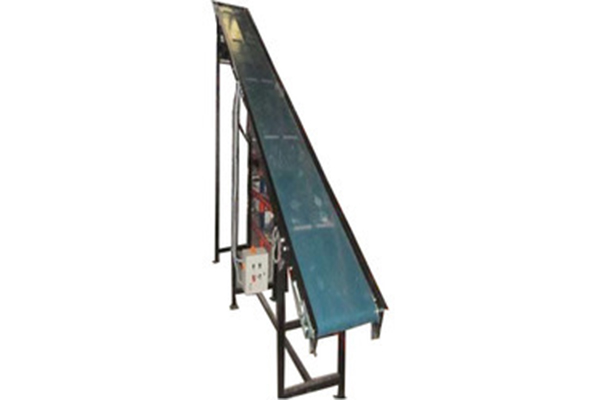

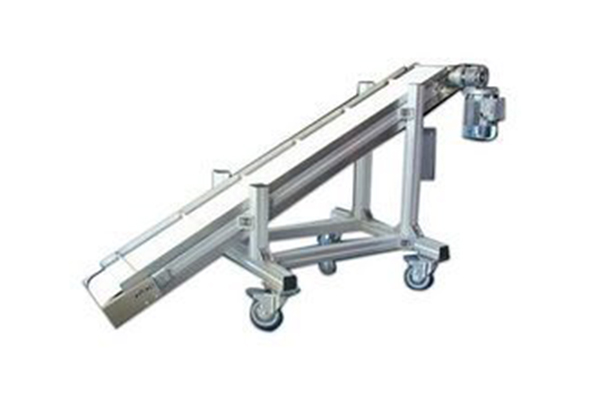

Inclined Belt Conveyor

We offer a range of Inclined Belt Conveyor that find application in handling of large and bulky material. Constructed using precision engineered components, these are known for rugged construction and long service life. Available in various specifications, these can also be customized as per the specific application needs of our clients.

Features:

Length 1000 mm to 6000 mm
Input Height 300mm to 1000mm
Output Height 1000mm to 6000mm
Width 100 mm, 150 mm, 200 mm, 250 mm, 300 mm, 400 mm, 500 mm, 600 mm, 700 mm, 800 mm, 1000mm
Motor 220-240 V (delta) /380-415 V Y (Star) /50 Hz
Fixed Speed Min 3 m/min; Max 55 m/min
Variable Speed With VFD (1 phase input, 3 Phase output)
Belt Material PVC, PU, Rubber (Plane , Grip top Belt)
Structure Aluminum, stainless steel, SS 304 / 316
Type of Drive Direct, Indirect, Intermediate
Inclined Belt Conveyor India

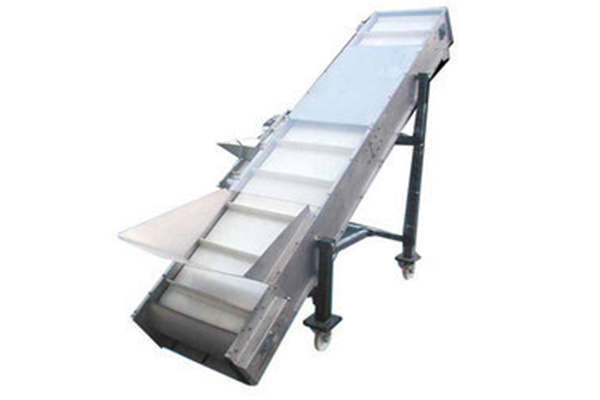

Inclined Cleated Belt Conveyor

We have with us a range of Inclined Cleated Belt Conveyor,that are extensively used in the applications of automotive, warehouses and various other sectors. These belt conveyors are suitable for heavy-duty applications and movement of large and bulky products. Sturdily constructed using best grade components, these are known for high performance and better durability. Further, we also make sure that these are in compliance with set industrial standards.

Features:

Length 1000 mm to 6000 mm
Input Height 300mm to 1000mm
Output Height 1000mm to 6000mm
Width 100 mm, 150 mm, 200 mm, 250 mm, 300 mm, 400 mm, 500 mm, 600 mm, 700 mm.
Motor 220-240 V (delta) /380-415 V Y (Star) /50 Hz
Fixed Speed Min 3 m/min; Max 55 m/min
Variable Speed With VFD (1 phase input, 3 Phase output)
Belt Material PVC, PU, Rubber (with Cleats of height 30mm to 60 mm)
Structure Aluminum, stainless steel, SS 304 / 316
Type of Drive Direct, Indirect, Intermediate
Inclined Cleated Belt Conveyor

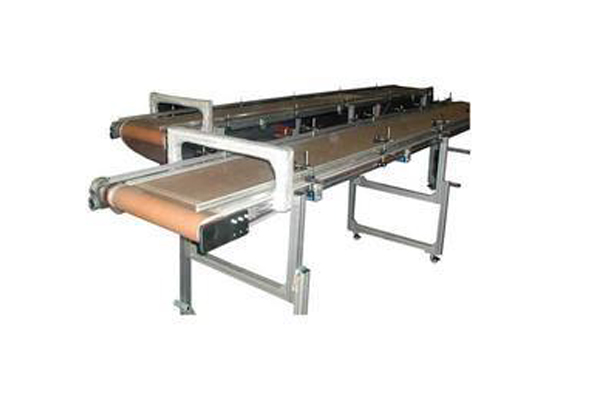

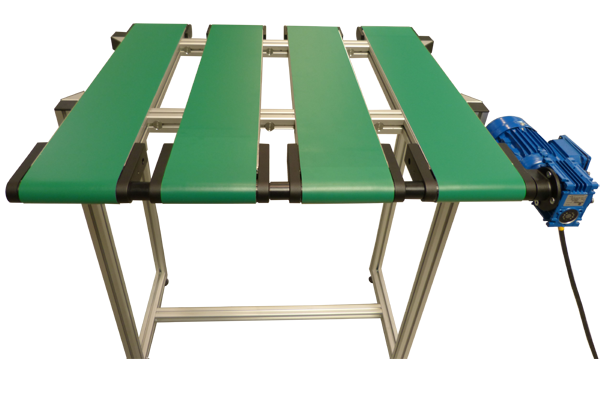

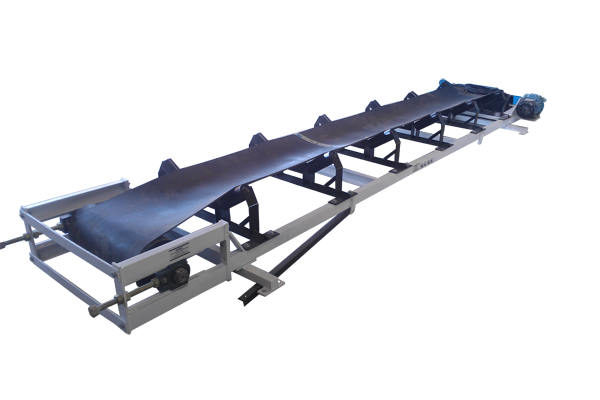

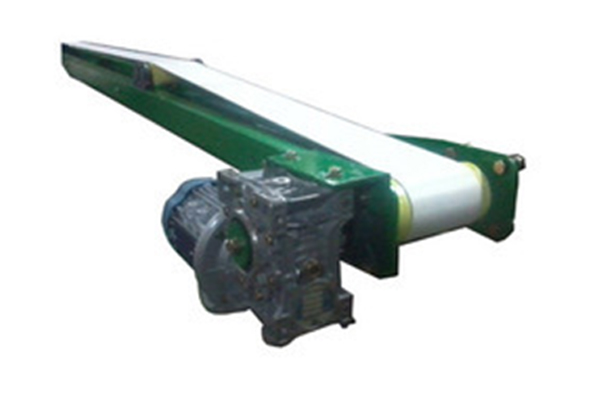

Flat Belt Conveyor

We are one of the leading manufacturers and suppliers of Flat Belt Conveyor, suitable for continuous heavy-duty applications and the movement of large and bulky products. These versatile conveyors are available in various specifications and are provided with a multitude of options, like – belt, drive, tail, stand and rail options. Our customized variety in belt conveyors includes inclined flat and cleat belt that are designed to meet the defined process demand.

Specification:

Length 300 mm to 10000 mm
Width 50 mm, 100 mm, 150 mm, 200 mm, 250 mm, 300 mm, 400 mm, 500 mm, 600 mm, 700 mm, 800 mm, 1000mm
Motor 220-240 V (delta)/380-415 V Y (Star)/50 Hz
Fixed Speed Min 3 m/min; Max 30 m/min
Variable Speed With VFD (1 phase input, 3 Phase output)
Belt Material PVC, PU, Rubber
Structure Aluminum, stainless steel, SS 304 / 316
Type of Drive Direct, Indirect, Intermediate
Flat Belt Conveyor Manufacturer

Take Off Conveyor

We provide our clients a qualitative range of Take Off Conveyor that are designed using cutting edge technology. Our range is extensively used in the material handling applications of various industries such as food, automotive, warehouses etc. Manufactured from quality material, these are known for sturdy construction, durable performance and long working life. Further, we also offer these conveyors in customized specification as detailed by the clients.

Specifications:

Length 1000 mm to 3000 mm
Input Height 300mm to 500mm
Output Height 1000mm to 2000mm
Width 100 mm, 150 mm, 200 mm, 250 mm, 300 mm, 400 mm.
Motor 220-240 V (delta) /380-415 V Y (Star) /50 Hz
Fixed Speed Min 3 m/min; Max 25 m/min
Variable Speed With VFD (1 phase input, 3 Phase output)
Belt Material PVC, PU, Rubber (with Cleats of height 20mm to 40 mm)
Structure Aluminum, stainless steel, SS 304 / 316
Type of Drive Direct, Indirect, Intermediate



Take Off Conveyor Exporter

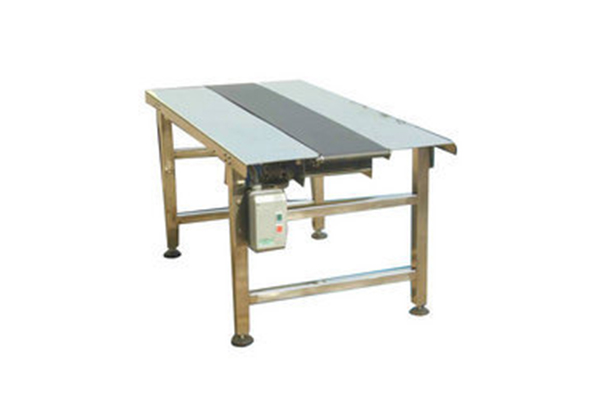

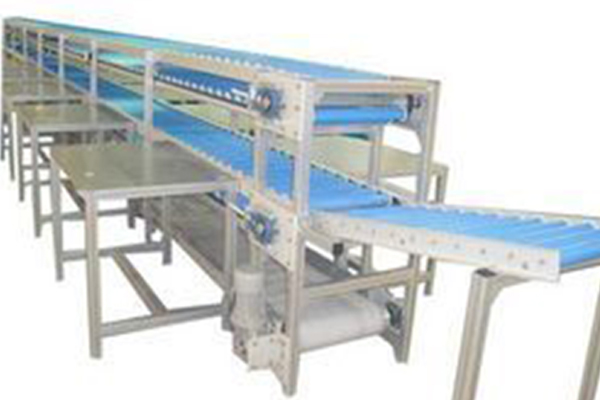

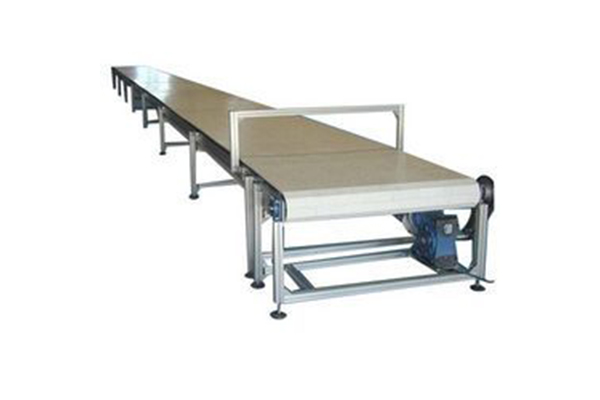

Table Conveyor

We manufacture a range of Table Conveyor that are specifically designed to meet the required application needs of our clients. These belt conveyors are precision engineered using advanced technology and appreciated for their rigid construction, optimum performance and durability. Further, we also quality test these conveyors on various quality parameters to match with set industrial standards.

Specifications:

Length 1000 mm to 4000 mm
Conveyor Width 500 mm, 600 mm, 700 mm, 800 mm, 1000mm, 1500mm
Belt Width 200mm, 300mm, 500mm, 700mm.
Side table width 200mm, 300mm, 400mm
Motor 220-240 V (delta) /380-415 V Y (Star) /50 Hz
Fixed Speed Min 3 m/min; Max 30 m/min
Variable Speed With VFD (1 phase input, 3 Phase output)
Belt Material PVC, PU, Rubber
Structure Aluminum, stainless steel, SS 304 / 316
Type of Drive Direct, Indirect, Intermediate
Table Conveyor Manufacturer in Ahmedabad

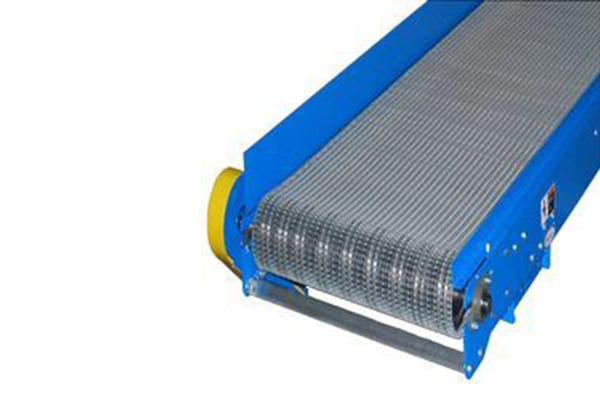

Wire Mesh Chain Conveyor

We are trusted manufacturers and suppliers of Wire Mesh Chain Conveyor that are fabricated using finest grades of stainless steel. Easy to operate and maintain, these conveyors come in multitude of dimensions and shapes with accessories. Renowned for robust construction and effective conveying of bulk material, these find wide application in automotive, food and packaging industries. We offer these conveyors at industry leading prices.

The accessories offered by us are given below:

  • Control panel in MS/SS with VFD, on, off switches , emergency off switch and potentiometer for speed adjustment Customized adjustable side guides in aluminum / stainless steel
  • Independent D.O.L. starter

Specifications:

Chain Material Steel, stainless steel
Link Width of Plastic 82, 88, 101, 114, 127 & 152 mm
Link width of stainless steels 82, 88, 101, 114, 152, 177 & 190 mm
Link Width of Polypropylene 150 mm
Motor 220-240V (delta) / 380-415V Y (star) / 50 Hz
Fixed Speed Min 5 m/min; Max 35 m/min
Variable Speed With VFD (1 phase input & 3 phase output)
Structure Aluminum, steel, stainless steel
Type Straight, inclined, angled or z shaped



Wire Mesh Chain Conveyor India

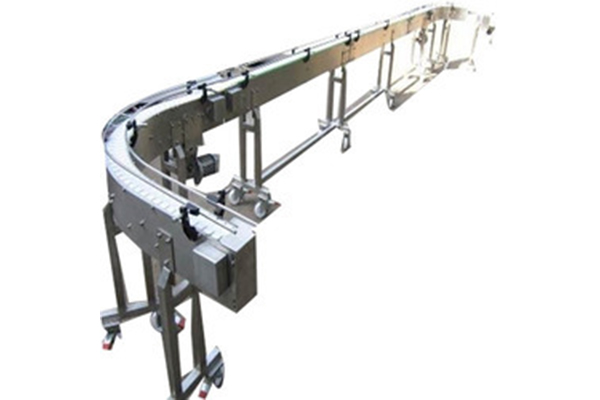

SS Slat Chain Conveyor

We provide a range of SS Slat Chain Conveyor that find wide applications in food, bottling and automotive industries. These chain conveyors are constructed from high grade SS 304 / 316, aluminum and MS with powder coating. These precision engineered conveyors are known for rugged construction, high performance and better durability. Further, we also design these chain conveyors as per the specific requirements of our clients.

Specifications:

Conveyor Type Straight, Bend, 90 Deg Bend, 180 Deg Bend Chain Conveyor
Length 1000 mm to 15000 mm
Width 82mm, 85mm, 101mm, 114mm, 127mm and 152mm, 190mm
Motor 220-240 V (delta) /380-415 V Y (Star) /50 Hz
Fixed Speed Min 5 m/min; Max 72 m/min
Variable Speed With VFD (1 phase input, 3 Phase output)
Belt Material Acetal Chain
Structure Aluminum, MS with Powder Coating / Painting, SS 304 / 316
Type of Drive Direct, Indirect, Intermediate



SS Slat Chain Conveyor Supplier

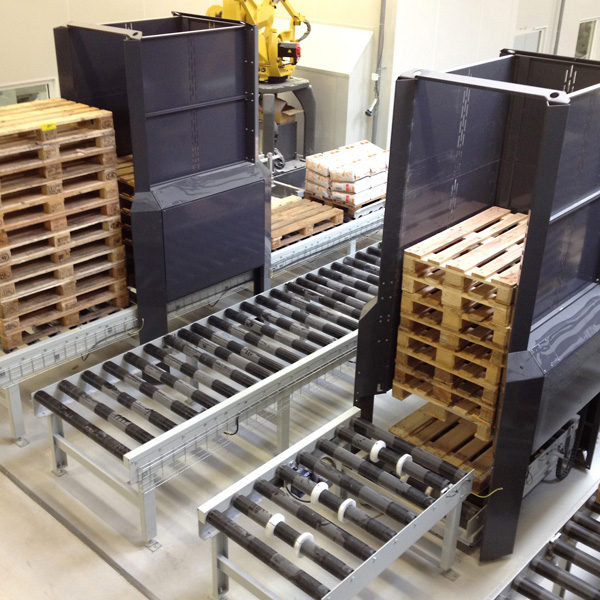

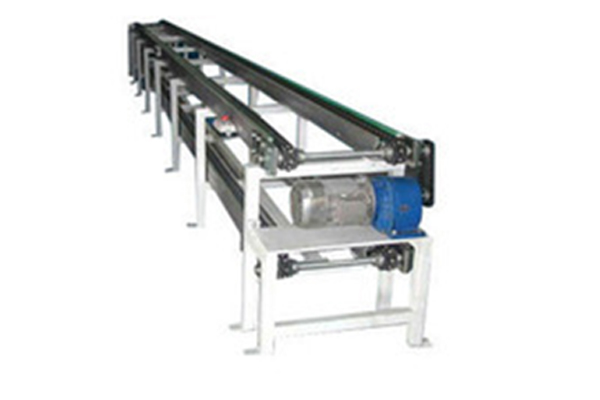

Palletized Chain Conveyor

Our clients can avail from us Palletized Chain Conveyorsystems that offer perfect solutions for bulk handling requirements of food industry. Designed with the assistance of our advanced technology, these conveyors are available in two types – single tier palletized chain conveyors and two tier palletized chain conveyors. Offered at industry leading prices, these conveyors are available in customized dimensions in accordance with application requirements.

Some of the accessories available comprise:

  • Ball castor table
  • Lifter and lowerators stoppers
  • Cross transfers
  • Side tables bin stands in aluminum profile with tube light & nut runner

Specifications:

Length 2.5 m to 25 m
Chain Accumulator chain with steel roller or plastic roller
Motor 220-240 V (delta)/ 380 -415 V Y (Star)/ 50 Hz
Speed Max 30 m/min
Conveyor Frame Aluminum profile
Structure Aluminum profile, steel
Types Single tier and two tier
Palletized Chain Conveyor India

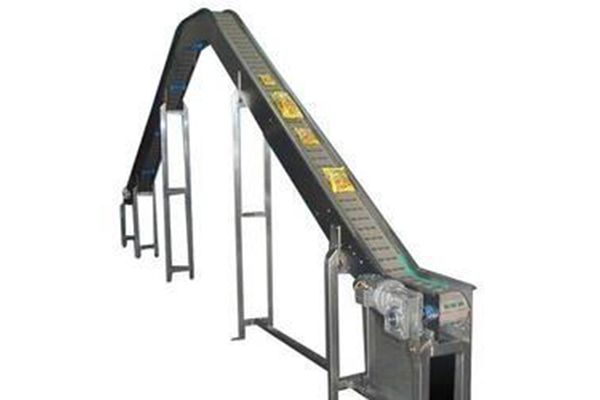

Inclined Slat Chain Conveyor

Backed by robust infrastructure, we manufacture and supply a range of Inclined Slat Chain Conveyor that are used for material handling purpose in various industries. Designed using latest technology, these chain conveyors are high in performance and easy to operate and maintain. Our range of conveyors are available in various dimensions and shapes to meet the diverse requirements of the clients.

Specifications:

Conveyor Type Straight , Bend , 90 Deg Bend, 180 Deg Bend Chain Conveyor
Length 1000 mm to 15000 mm
Width 82mm,85mm,101mm,114mm,127mm and 152mm,190mm
Motor 220-240 V (delta)/380-415 V Y (Star)/50 Hz
Fixed Speed Min 5 m/min; Max 72 m/min
Variable Speed With VFD (1 phase input, 3 Phase output)
Belt Material Acetal Chain
Structure Aluminum, MS with Powder Coating / Painting ,SS 304 / 316
Type of Drive Direct, Indirect , Intermediate



Inclined Slat Chain Conveyor

Sorting Line Conveyor

Our range of Sorting Line Conveyor are specially designed to meet the applications of food, packaging and various other industries. Fabricated with utmost precision, these are acknowledged for rugged construction and easy operation & maintenance. These are tested by our quality analysts on various parameters to make sure that only a flawless and qualitative range reaches to the clients. Further, we also provide these line conveyors on turnkey basis to our clients.

Given below is the accessories offered by us:

  • Independent D.O.L starter
  • Customized adjustable side guides in aluminum, stainless steel
  • Control panel in MS/SS with VFD, on, off switches, emergency off switch and potentiometer for speed adjustment

Specifications:

Length 1 m to 25 m
Roller Width 200 mm to 1000 mm
Roller Material Steel, plastic
Roller Diameter 50mm
Type of Conveyor Powered roller conveyor, 90 degree bend powered roller conveyor.
Motor 220-240 (delta)/380-415 VY (Star)/50 Hz
Speed Max 30 m/min
Variable Speed With VFD (1 phase input & 3 phase output)
Structure Stainless steel, steel
Powered Roller Conveyor

Teflon Belt Conveyor

We offer our clients Teflon Belt Conveyor that are precision manufactured using quality checked material. These conveyors are ideal for bulk material handling applications in various industries such as automotive, warehouses etc. Our range is known for rugged construction, durable performance and easy operation. Further, we also have facility to provide these conveyors on turnkey basis to our clients.
Specifications:

Length 300 mm to 10000 mm
Width 50 mm, 100 mm, 150 mm, 200 mm, 250 mm, 300 mm, 400 mm, 500 mm, 600 mm, 700 mm, 800 mm, 1000mm
Motor 220-240 V (delta)/380-415 V Y (Star)/50 Hz
Fixed Speed Min 3 m/min; Max 30 m/min
Variable Speed With VFD (1 phase input, 3 Phase output)
Belt Material PVC, PU, Rubber
Structure Aluminum, stainless steel, SS 304 / 316
Type of Drive Direct, Indirect, Intermediate
Teflon Belt Conveyor, Manufacturer

BELT CONVEYOR SYSTEMS

Clients can avail from us a quality assured range of Belt Conveyors. These have been developed by our team of experts keeping in mind the full compliance to international quality norms and guidelines. The offered belt conveyors range has been widely accepted by many of our patrons for its features such as durability, sturdy construction & energy efficiency. We are offering these belt conveyors to clients in varied lengths and widths in order to meet varied industrial applications. Furthermore, these belt conveyors find their applications in cement, steel, paper & pulp, pharma, sugar, mining, construction, light & heavy engineering industries.

Some major features are:

  • Robust construction
  • High load carrying capacity
  • Energy efficient
BELT CONVEYOR SYSTEMS INDIA

PALLET HANDLING CONVEYOR

Pallet Conveyor (also referred to as pallet handling conveyoror unit load conveyor) offers a highly efficient means of transporting, accumulating, lifting, and sorting heavy loads as an alternative to manual handling with forklifts.

A key element of warehouse automation operations, as well as automated palletizing systems, where a continuous feed of work is desirable to optimize the equipment, a pallet conveyor system has the capacity to automate the movement of  unit loads weighing thousands of pounds under demanding conditions.

Some common applications in distribution and fulfillment centers for Pallet Conveyor Systems and individual pallet conveyor units include:

  • Receiving, unloading, and segregation
  • Transport over short distances
  • Accumulation and buffering between functions
  • Horizontal and vertical change in direction
  • Part of an Automated Storage and Retrieval System
  • Work in process handling and staging

Non-powered roller conveyors or Gravity Conveyors are the most economical and common method of conveying unit loads. The conveyors are typically mounted on a slight decline angle, therefore using gravity to assist product movement, especially for long distances.  They can also be used in applications where the conveyor is level and operators can push the product along to its final destination, allowing for multiple workstations, if needed.

Where it Works:

  • Warehousing & Distribution
  • Manufacturing
  • Order Fulfillment
  • Aerospace
  • Government Military & Agency
  • Automotive
  • Parcel Handling
  • Appliance
  • Cabinetry & Furniture
  • Food & Beverage

Application:

• Convey loads of Cartons, Totes, Fixtures, Cardboard Boxes

• Non-Contact Accumulation

• Unitized

• Pallet loads when bottom boards are perpendicular to the rollers

• Pallet loads when bottom boards are parallel to the rollers

• Side loading/unloading

• Accumulation of loads

PALLET HANDLING CONVEYOR INDIA

LIVE ROLLER CONVEYORS

Widest Variety of Live Roller Conveyors available on the market including:  V-Belt Driven, Lineshaft O-Ring Driven, Flat Belt Driven, Chain-Driven, 24Volt DC O-Ring Driven, Zero Pressure Zoned Accumulation, Minimum Pressure Accumulation.  Applications range from Basic Transportation of Cartons, Tote Boxes, etc., to conveying Large Heavy items such as Pallets, Bulk Container, Steel Drums, etc., to conveying Wet and/or Hot Oily Parts, etc.  Also available are Expandable/Extendable Live Roller Conveyors.

LIVE ROLLER CONVEYORS MANUFACTURER

PLASTIC BELT CONVEYOR

Pashupati rubtech pvt ltd,designs and manufactures innovative energy efficient modular plastic belted conveyor systems. With tool making, injection molding and fabrication under one roof, we bring to the Material Handling Equipment Industry reliable conveyor systems customized to our clients requirements. Our unique lightweight extruded aluminum modular sections are easy to assemble without needing technicians and will provide years of safe, trouble free performance.

PLASTIC BELT CONVEYOR

BELT CORVEYING SYSTEM

We specialize in manufacturing qualitative range of belt conveyor which find wide application in various fields to move diverse unit loads & bulk materials. Our conveyors are highly in demand in mining operation, foundries, bagasse handling in co-generation plants granaries, coal handling plants, bag handling in sugar godowns and packing industries. They are used in handling loads from one location to another within the process in line production. The belt conveyors are easily adapted to the natural contour of the ground and can be operated over long distance.

Entire assortment of the conveyors is characterized with:

  • High handling capacities
  • Simple in construction
  • Lightweight
  • Operational reliability
  • Convenience
  • Low maintenance
  • Highly energy efficient
  • Low power consumption as compared to other equipment
BELT CONVEYOR SYSTEMS INDIA

GRAVITY CONVEYOR SYSTEMS

We also design and manufacture qualitative range of gravity roller conveyor which can be used to store material from 100 kg to 500 kg with the pellet handling system. Special type of braking system is provided for controlling the speed of loaded pellet due to gravity. Roller conveyor FIFO racking system helps damping first pallet and takes back the pellet. It can raise maximum height because of no extra force is required for transferring the pellet.

GRAVITY CONVEYOR SYSTEMS SUPPLIERS
